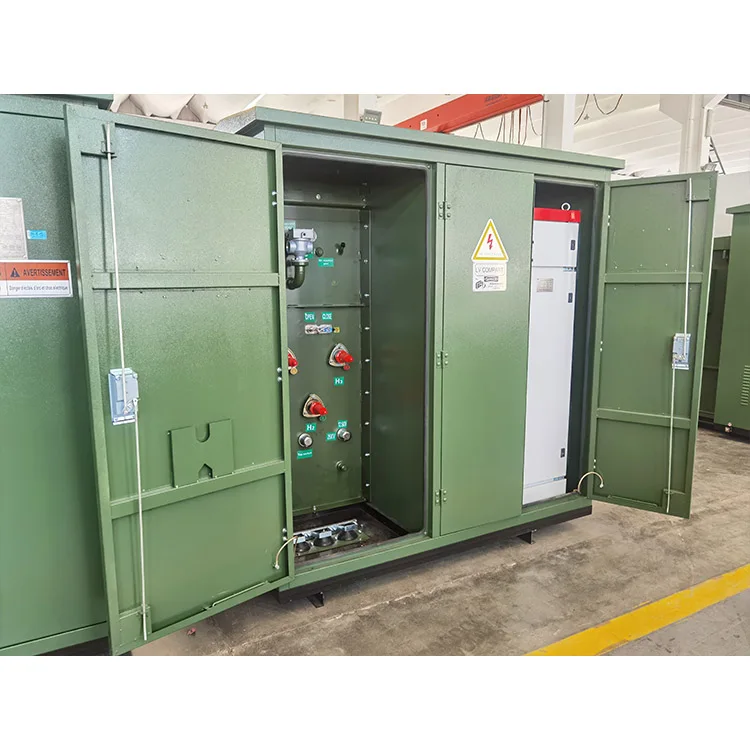

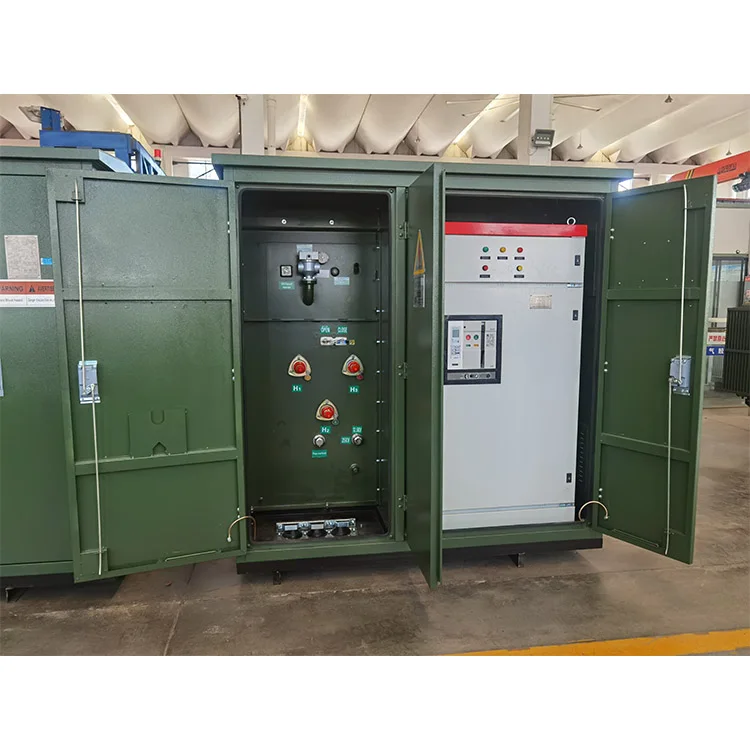

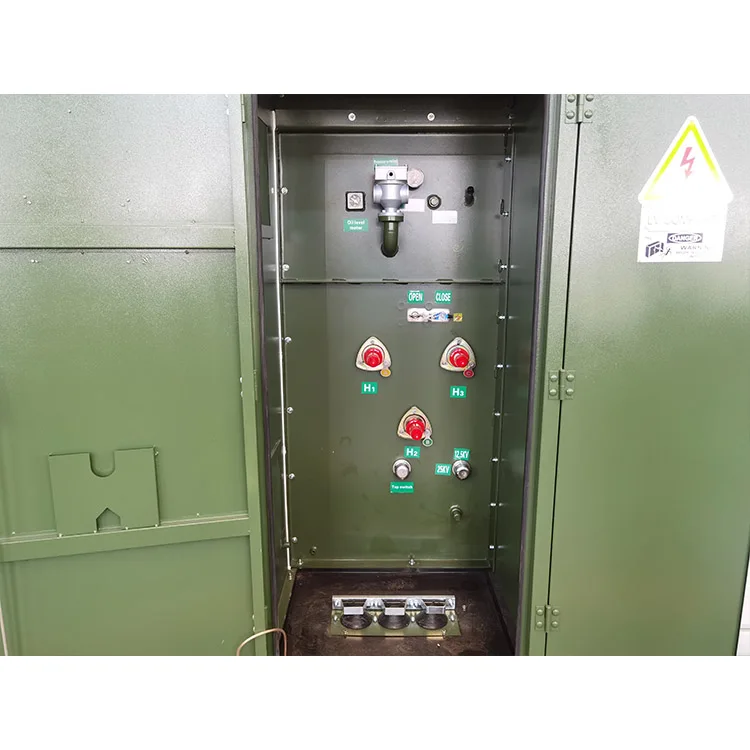

3 Phase Oil Type 1500kva Electrical Pad Mount Transformer Outdoor Compact Industrial 50 60Hz Step D
3 Phase Oil Type 1500kva Electrical Pad Mount Transformer Outdoor Compact Industrial 50 60Hz Step Down Transformer Alu
Engineered for robust outdoor industrial applications, this 1500 kVA 3-phase oil-type pad-mounted transformer delivers reliable step-down power conversion. The compact, tamper-proof aluminum-wound design seamlessly accommodates dual 50/60Hz frequencies, making it ideal for manufacturing facilities, commercial parks, and heavy-duty industrial substations.
Key Specifications
- Rated Capacity: 1500 kVA
- Transformer Type: Oil-Immersed Pad Mounted (Step-Down)
- Phase: 3 Phase
- Frequency: 50 / 60 Hz Dual Capability
- Winding Material: Aluminum (Alu)
- Enclosure: Outdoor Compact Industrial (Tamper-proof)
- Cooling Method: ONAN (Oil Natural Air Natural)
- Vector Group: Dyn11
3 Phase Oil Type 1500kva Electrical Pad Mount Transformer Outdoor Compact Industrial 50 60Hz Step Down Transformer Alu
Certified & Verified Enterprise
Ready to Upgrade Your Power Infrastructure?
Secure your energy supply with the 1000 KVA / 1250 KVA 11 KV Step Down Cast Resin Dry Type Power Transformer. Engineered with CRGO core and UL certification for maximum reliability. Get factory-direct pricing and professional engineering support today.
Technical Specifications
Comprehensive parameters for the 3 Phase Oil Type 1500kva Electrical Pad Mount Transformer Outdoor Compact Industrial 50 60Hz Step Down Transformer Alu
Need Complete Details?
Download our comprehensive product catalog and technical manual for full engineering data and installation guidelines.
Download PDF Manual| Parameter | Specification Details |
|---|---|
| Phase | 3 Phase |
| Rated Capacity | 1500 kVA |
| Primary Voltage | 13.8 kV (Customizable) |
| Secondary Voltage | 480Y/277 V |
| Frequency | 50 / 60 Hz |
| Vector Group | Dyn11 |
| Cooling Method | ONAN |
| Winding Material | Aluminum (Alu) |
| Insulation Class | A |
| Core Material | Cold-Rolled Grain-Oriented (CRGO) Silicon Steel |
| Design Standard | IEEE C57.12.34 / IEC 60076 |
| Application | Industrial / Commercial Outdoor |
| Certification | UL / IEC Compliant |
| Warranty | 24 Months |
Get Your Customized Power Solution
Provide your project requirements and our technical engineers will generate a detailed, competitive quotation for the 1000 KVA / 1250 KVA Cast Resin Dry Type Transformer within 12 hours.
12470V / 11KV Step Down Cast Resin Transformer
- Cooling: AN/AF
- Standard: IEC 60076/ANSI
- Vector Group: Dyn11 / Yyn0
- Voltage: 415V / 400V Output
If you have urgent technical questions or bidding deadlines, feel free to contact our senior engineering sales team directly:
Tel / WhatsApp: +8617502139434
Email: sales@millenium-electric.com
Visit Contact Page →We offer full customization for voltage ratings, winding materials (Copper/Aluminum), and enclosure dimensions to seamlessly integrate with your existing power infrastructure and comply with local grid standards.
We provide secure, sea-worthy vacuum packing to prevent humidity and corrosion during transit to any global sea port. Backed by a standard 1-Year comprehensive warranty with lifetime remote technical support.
