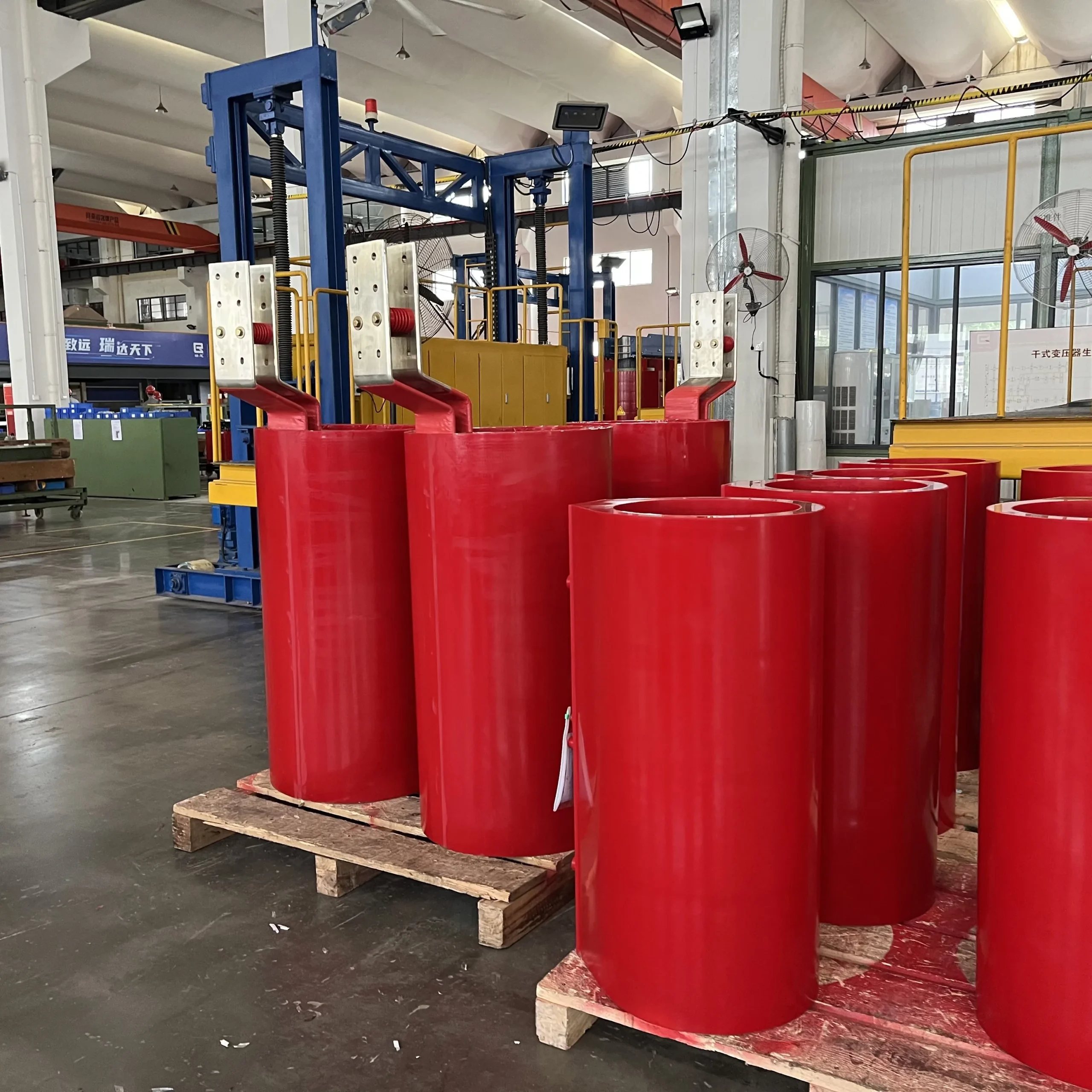

2500kVA High Voltage Coil 11kV 400V Transformer Price Three-Phase Cast Resin Dry Type MVHV Distribution Transformer
The 2500kVA 11kV/400V Cast Resin Dry-Type Distribution Transformer is expertly engineered for high-demand, indoor MV/HV distribution networks requiring maximum fire safety. Featuring epoxy resin encapsulated high voltage coils, this three-phase transformer provides exceptional reliability and low flammability for critical commercial buildings, industrial plants, and dense urban underground substations.
Key Specifications
- Rated Capacity: 2500 kVA
- Primary Voltage: 11 kV
- Secondary Voltage: 400 V
- Phase: Three-Phase
- Transformer Type: Cast Resin Dry Type
- Vector Group: Dyn11
- Cooling Method: AN/AF (Air Natural / Air Forced)
- Insulation Class: Class F/H
2500kVA High Voltage Coil 11kV 400V Transformer Price Three-Phase Cast Resin Dry Type MVHV Distribution Transformer
Certified & Verified Enterprise
Ready to Upgrade Your Power Infrastructure?
Secure your energy supply with the 1000 KVA / 1250 KVA 11 KV Step Down Cast Resin Dry Type Power Transformer. Engineered with CRGO core and UL certification for maximum reliability. Get factory-direct pricing and professional engineering support today.
Technical Specifications
Comprehensive parameters for the 2500kVA High Voltage Coil 11kV 400V Transformer Price Three-Phase Cast Resin Dry Type MVHV Distribution Transformer
Need Complete Details?
Download our comprehensive product catalog and technical manual for full engineering data and installation guidelines.
Download PDF Manual| Parameter | Specification Details |
|---|---|
| Rated Capacity | 2500 kVA |
| Primary Voltage | 11 kV |
| Secondary Voltage | 400 V |
| Phase | Three-Phase |
| Frequency | 50 Hz |
| Vector Group | Dyn11 |
| Cooling Method | AN / AF |
| Insulation Class | Class F or H |
| Core Material | CRGO Silicon Steel |
| Coil Construction | Vacuum Cast Epoxy Resin (HV Coil) |
| Design Standard | IEC 60076-11 |
| Enclosure Rating | IP00 (Standard) / IP20 (Optional Enclosure) |
| Application | Indoor Substations, Commercial Infrastructure |
| Certification | ISO 9001, CE, IEC Tested, RoHS |
Get Your Customized Power Solution
Provide your project requirements and our technical engineers will generate a detailed, competitive quotation for the 1000 KVA / 1250 KVA Cast Resin Dry Type Transformer within 12 hours.
12470V / 11KV Step Down Cast Resin Transformer
- Cooling: AN/AF
- Standard: IEC 60076/ANSI
- Vector Group: Dyn11 / Yyn0
- Voltage: 415V / 400V Output
If you have urgent technical questions or bidding deadlines, feel free to contact our senior engineering sales team directly:
Tel / WhatsApp: +8617502139434
Email: sales@millenium-electric.com
Visit Contact Page →We offer full customization for voltage ratings, winding materials (Copper/Aluminum), and enclosure dimensions to seamlessly integrate with your existing power infrastructure and comply with local grid standards.
We provide secure, sea-worthy vacuum packing to prevent humidity and corrosion during transit to any global sea port. Backed by a standard 1-Year comprehensive warranty with lifetime remote technical support.
