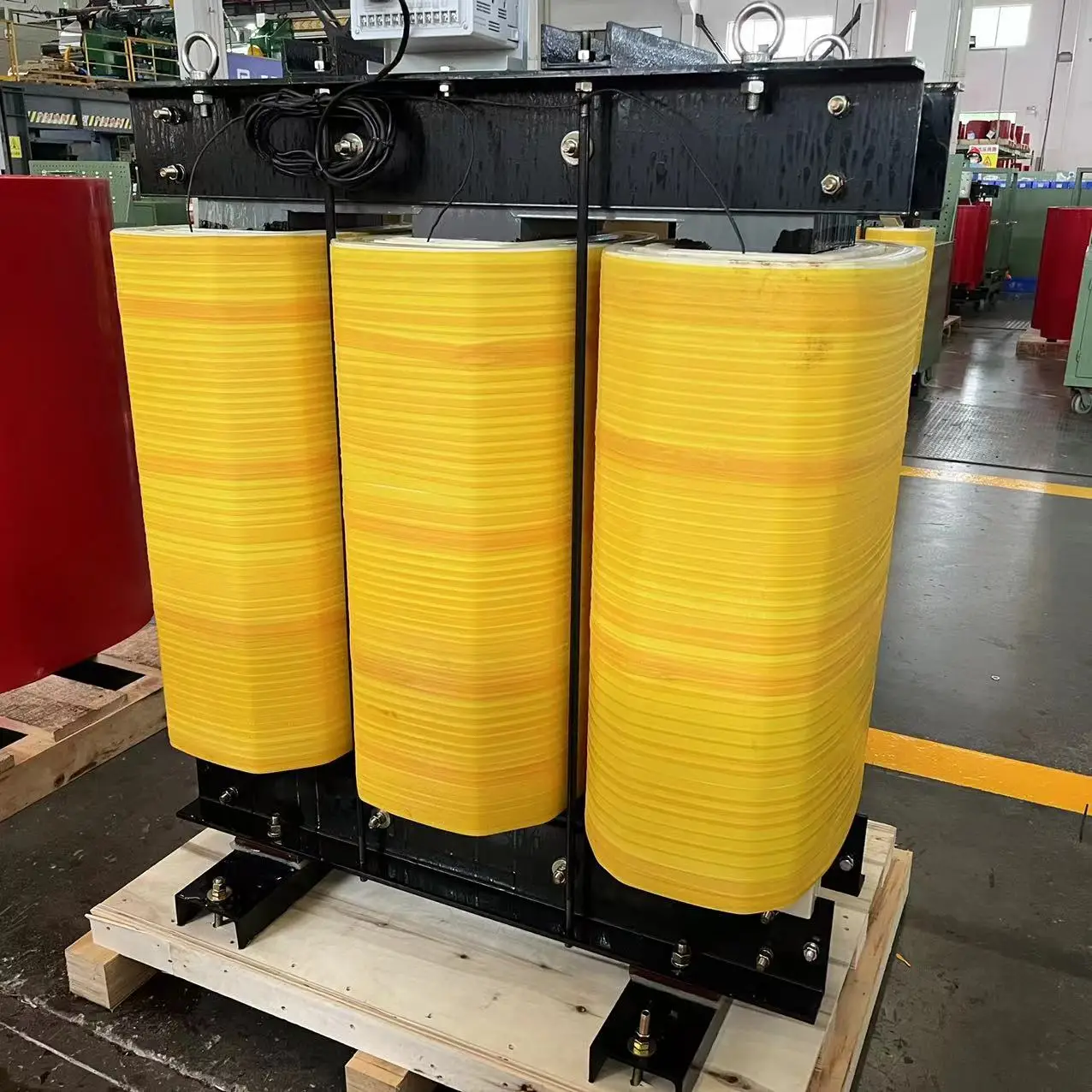

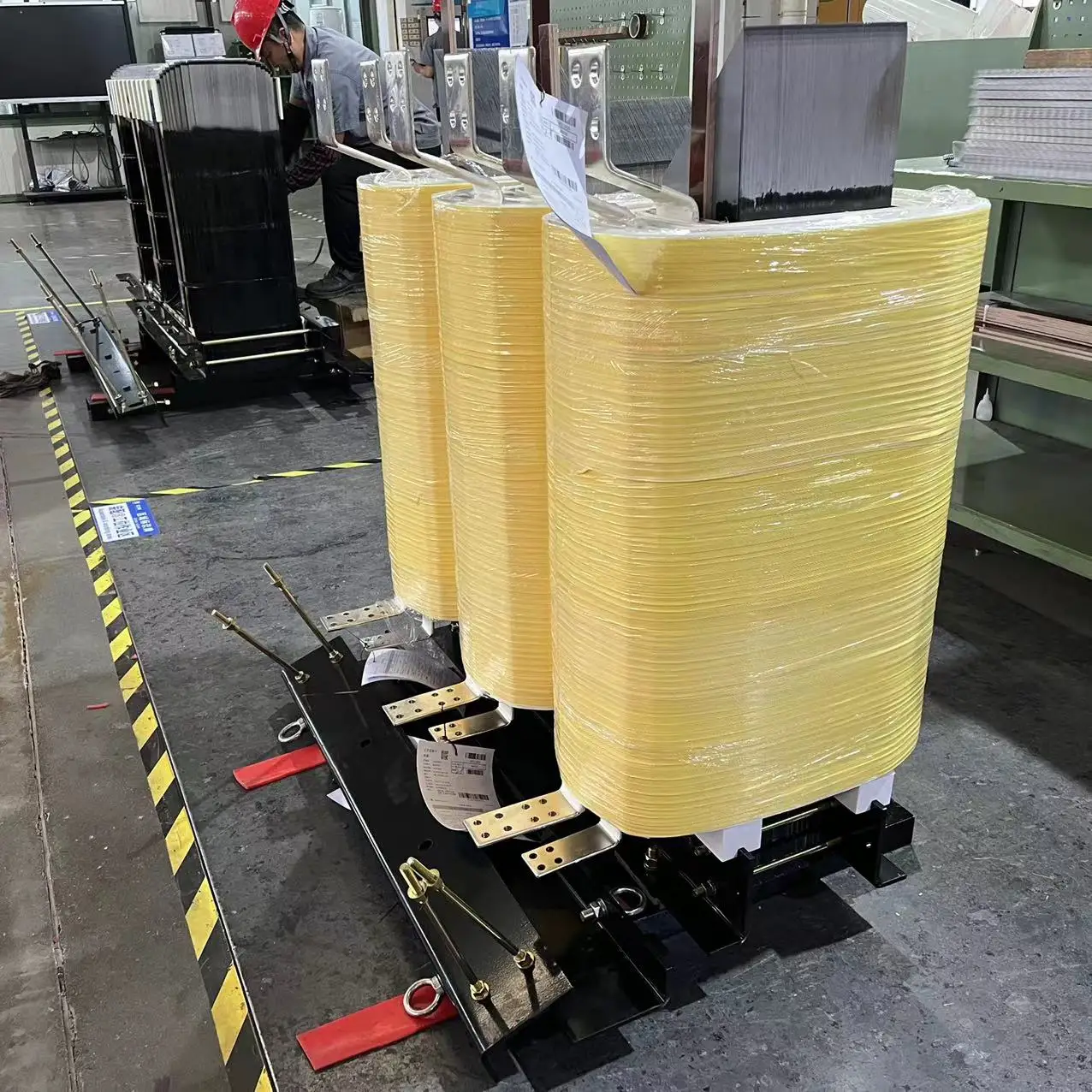

150kVA 0.4kv Isolation Dry Type Transformer VPI Vacuum Pressure Impregnated
150kVA 0.4kv Isolation Dry Type Transformer VPI Vacuum Pressure Impregnated
The 150kVA 0.4kV Isolation Dry Type Transformer is engineered with advanced Vacuum Pressure Impregnated (VPI) technology to deliver exceptionally clean and stable power. Specifically designed for critical low-voltage industrial operations, this isolation unit heavily mitigates electrical noise and ground loop issues to protect sensitive automation and diagnostic equipment.
Key Specifications
- Rated Capacity: 150 kVA
- Voltage Level: 0.4 kV / 0.4 kV (Galvanic Isolation)
- Insulation Technology: Vacuum Pressure Impregnated (VPI)
- Transformer Type: Special Dry Type Isolation
- Phase: Three Phase
- Insulation Class: Class H (220°C)
- Cooling Method: AN (Air Natural)
- Vector Group: Dyn11
150kVA 0.4kv Isolation Dry Type Transformer VPI Vacuum Pressure Impregnated
Certified & Verified Enterprise
Ready to Upgrade Your Power Infrastructure?
Secure your energy supply with the 1000 KVA / 1250 KVA 11 KV Step Down Cast Resin Dry Type Power Transformer. Engineered with CRGO core and UL certification for maximum reliability. Get factory-direct pricing and professional engineering support today.
Technical Specifications
Comprehensive parameters for the 150kVA 0.4kv Isolation Dry Type Transformer VPI Vacuum Pressure Impregnated
Need Complete Details?
Download our comprehensive product catalog and technical manual for full engineering data and installation guidelines.
Download PDF Manual| Parameter | Specification Details |
|---|---|
| Phase | Three Phase |
| Rated Capacity | 150 kVA |
| Primary Voltage | 0.4 kV |
| Secondary Voltage | 0.4 kV |
| Frequency | 50 Hz / 60 Hz |
| Vector Group | Dyn11 |
| Cooling Method | AN (Air Natural) |
| Insulation Class | Class H (220°C) |
| Winding Material | Copper or Aluminum (VPI process) |
| Core Material | High-permeability Grain-Oriented Silicon Steel |
| Impedance Voltage | 4% |
| Design Standard | IEC 60076-11, IEEE C57.12.01 |
| Application | Industrial Automation, Medical, Precision Machinery Isolation |
| Warranty | 2 Years |
