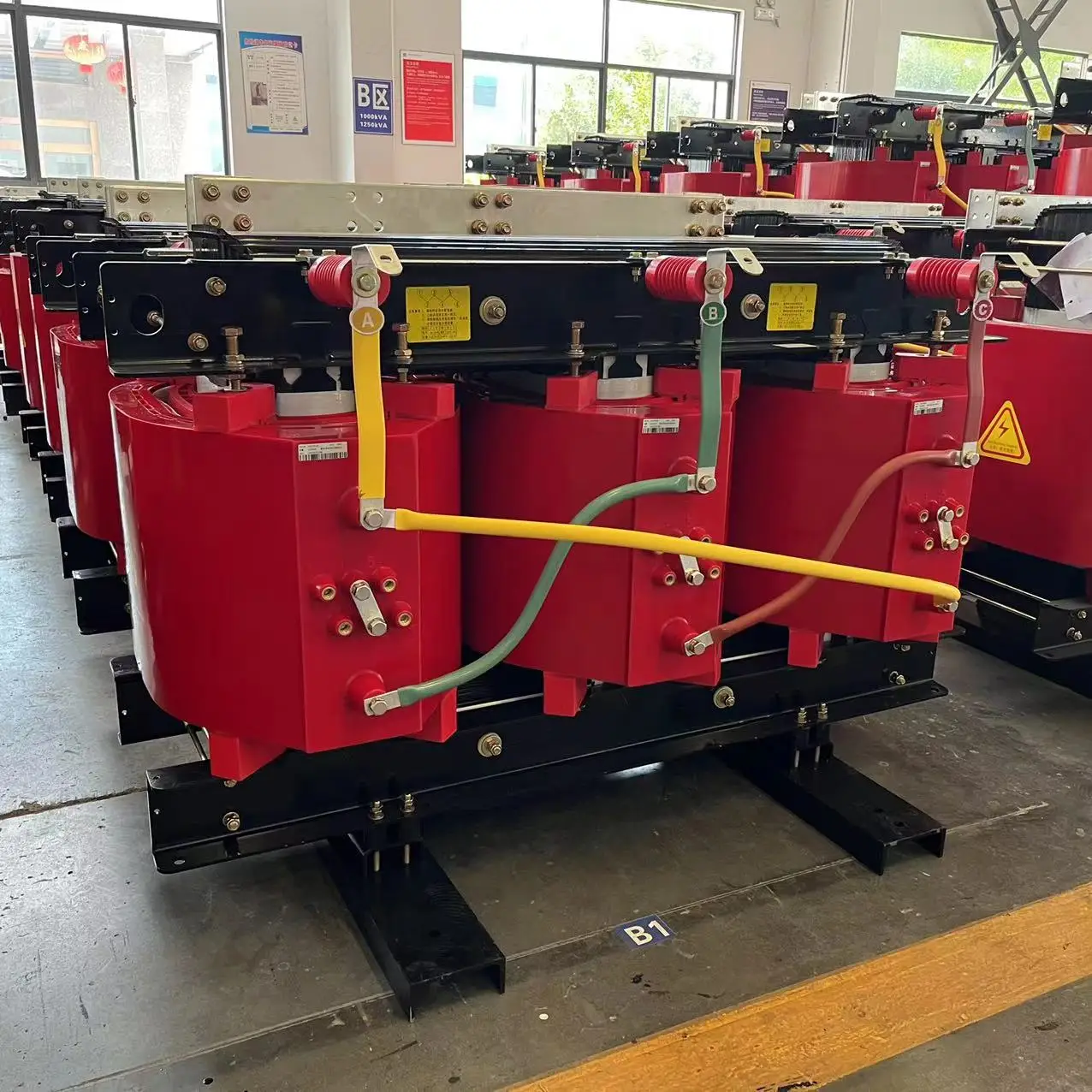

13.09kv to 480v 277v Low Voltage 3 phase Cast Resin Dry type transformers 1600kva 1500kva 5mva 13.8
13.09kv to 480v 277v Low Voltage 3-phase Cast Resin Dry-type transformers 1600kva 1500kva 5mva 13.8 Kv IEC Dyn11 Ip31
Engineered for high-demand indoor electrical networks, this 3-phase cast resin dry-type transformer supports variable capacities from 1500 kVA and 1600 kVA up to 5 MVA. By safely stepping down 13.8 kV or 13.09 kV primary grids to a dependable 480Y/277 V low-voltage output, it perfectly suits commercial facilities, data centers, and heavy manufacturing plants. Encased in an IP31-rated enclosure and built to rigorous IEC standards, it ensures superior fire resistance and environmental protection for integrated indoor distribution.
Key Specifications
- Rated Capacities: 1500 kVA, 1600 kVA, up to 5 MVA
- Primary Voltage: 13.09 kV / 13.8 kV
- Secondary Voltage: 480Y/277V Low Voltage
- Transformer Type: 3-Phase Cast Resin Dry-Type
- Vector Group: Dyn11
- Protection Rating: IP31 Enclosure
- Standard Compliance: IEC Built and Certified
- Cooling Method: AN/AF (Air Natural / Air Forced)
13.09kv to 480v 277v Low Voltage 3-phase Cast Resin Dry-type transformers 1600kva 1500kva 5mva 13.8 Kv IEC Dyn11 Ip31
Certified & Verified Enterprise
Ready to Upgrade Your Power Infrastructure?
Secure your energy supply with the 1000 KVA / 1250 KVA 11 KV Step Down Cast Resin Dry Type Power Transformer. Engineered with CRGO core and UL certification for maximum reliability. Get factory-direct pricing and professional engineering support today.
Technical Specifications
Comprehensive parameters for the 13.09kv to 480v 277v Low Voltage 3-phase Cast Resin Dry-type transformers 1600kva 1500kva 5mva 13.8 Kv IEC Dyn11 Ip31
Need Complete Details?
Download our comprehensive product catalog and technical manual for full engineering data and installation guidelines.
Download PDF Manual| Parameter | Specification Details |
|---|---|
| Phase | 3-Phase |
| Rated Capacity | 1500 kVA / 1600 kVA / 5 MVA |
| Primary Voltage | 13.09 kV / 13.8 kV |
| Secondary Voltage | 480V / 277V |
| Frequency | 50 Hz / 60 Hz |
| Vector Group | Dyn11 |
| Protection Rating | IP31 |
| Cooling Method | AN/AF |
| Insulation Class | F / H |
| Core Material | High-Permeability Grain-Oriented Silicon Steel |
| Winding Material | Copper or Aluminum (Epoxy Cast) |
| Design Standard | IEC 60076-11 |
| Application | Indoor Substation, Commercial, Data Centers |
| Certification | IEC |
Get Your Customized Power Solution
Provide your project requirements and our technical engineers will generate a detailed, competitive quotation for the 1000 KVA / 1250 KVA Cast Resin Dry Type Transformer within 12 hours.
12470V / 11KV Step Down Cast Resin Transformer
- Cooling: AN/AF
- Standard: IEC 60076/ANSI
- Vector Group: Dyn11 / Yyn0
- Voltage: 415V / 400V Output
If you have urgent technical questions or bidding deadlines, feel free to contact our senior engineering sales team directly:
Tel / WhatsApp: +8617502139434
Email: sales@millenium-electric.com
Visit Contact Page →We offer full customization for voltage ratings, winding materials (Copper/Aluminum), and enclosure dimensions to seamlessly integrate with your existing power infrastructure and comply with local grid standards.
We provide secure, sea-worthy vacuum packing to prevent humidity and corrosion during transit to any global sea port. Backed by a standard 1-Year comprehensive warranty with lifetime remote technical support.
