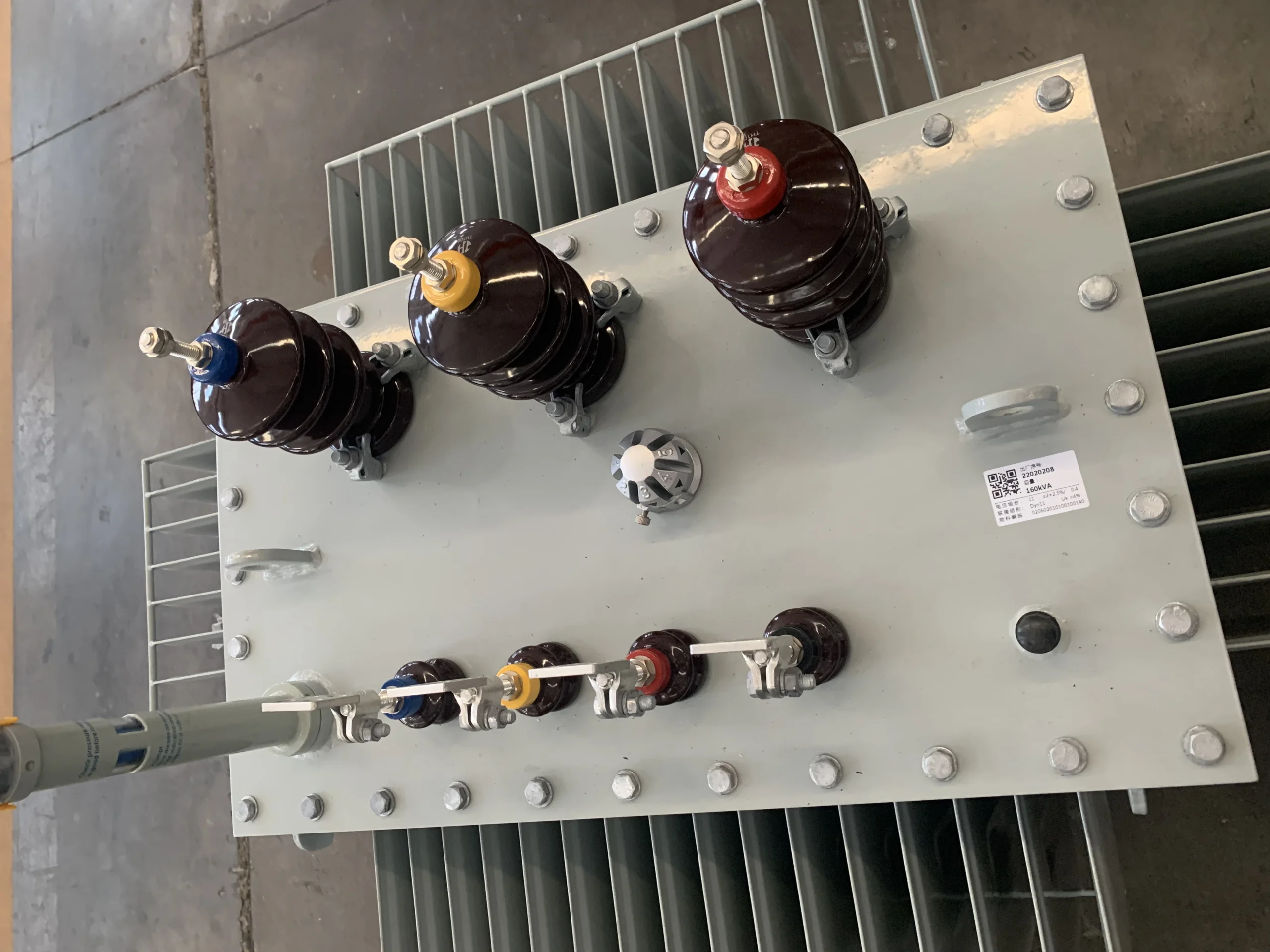

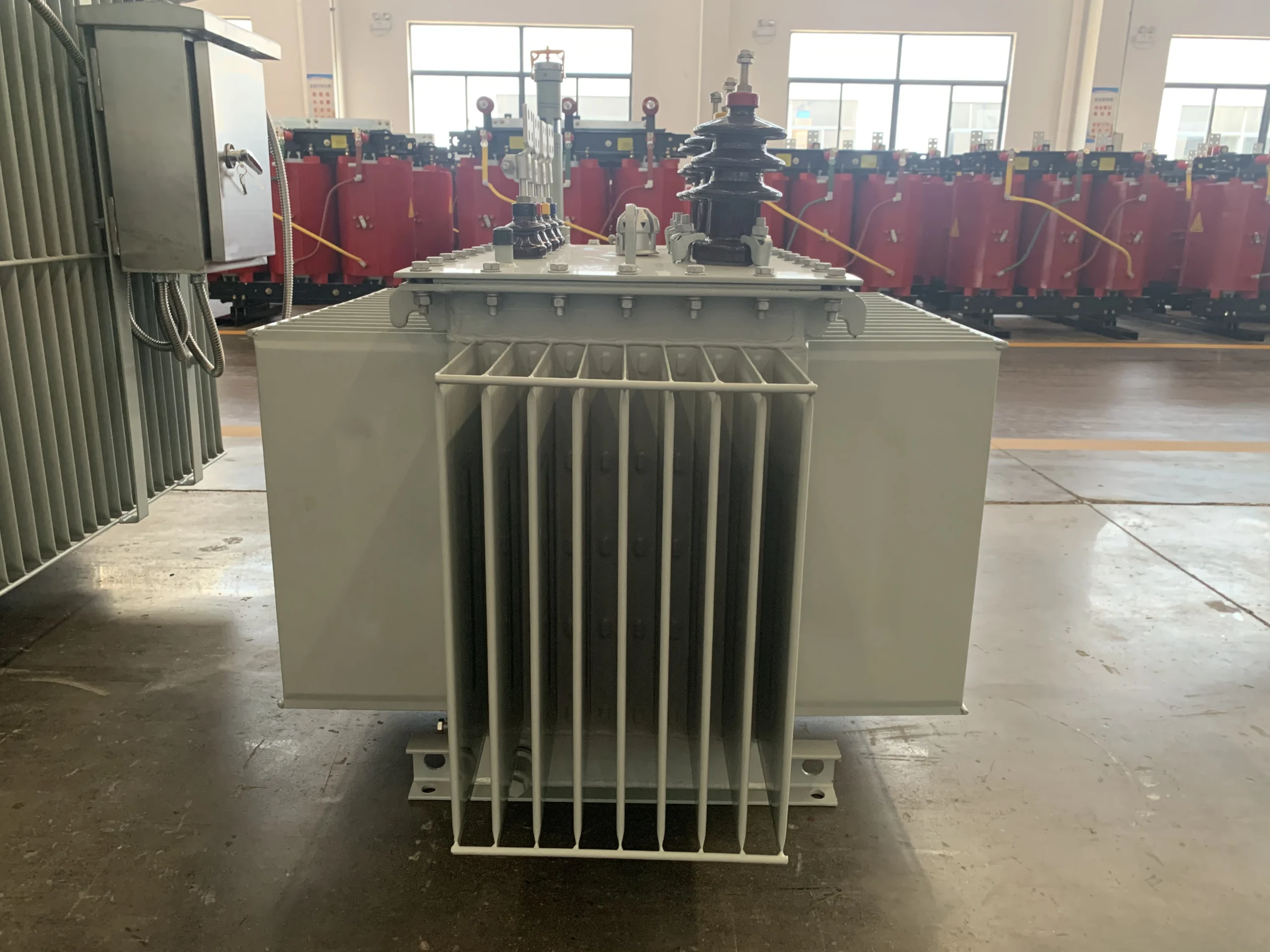

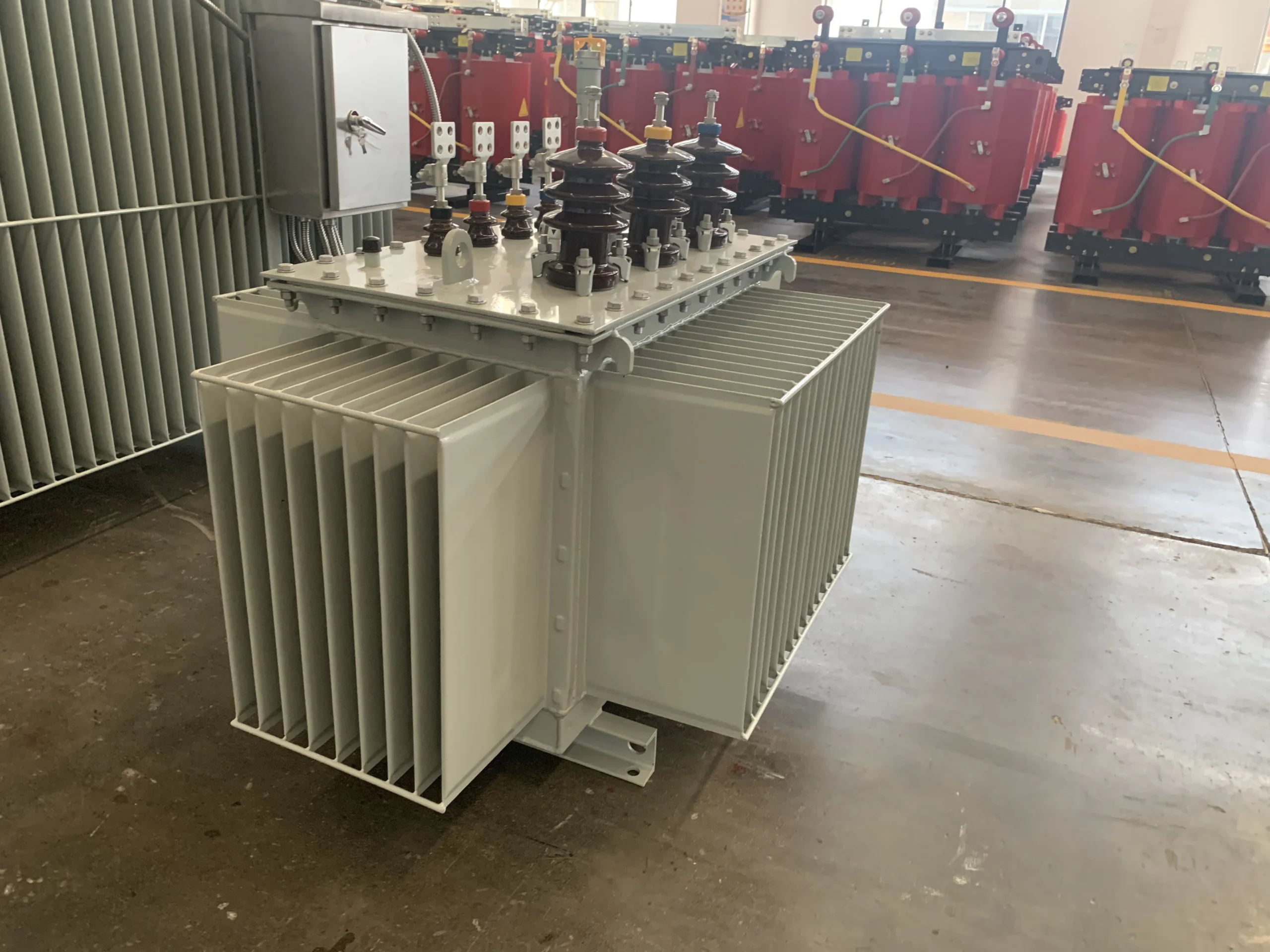

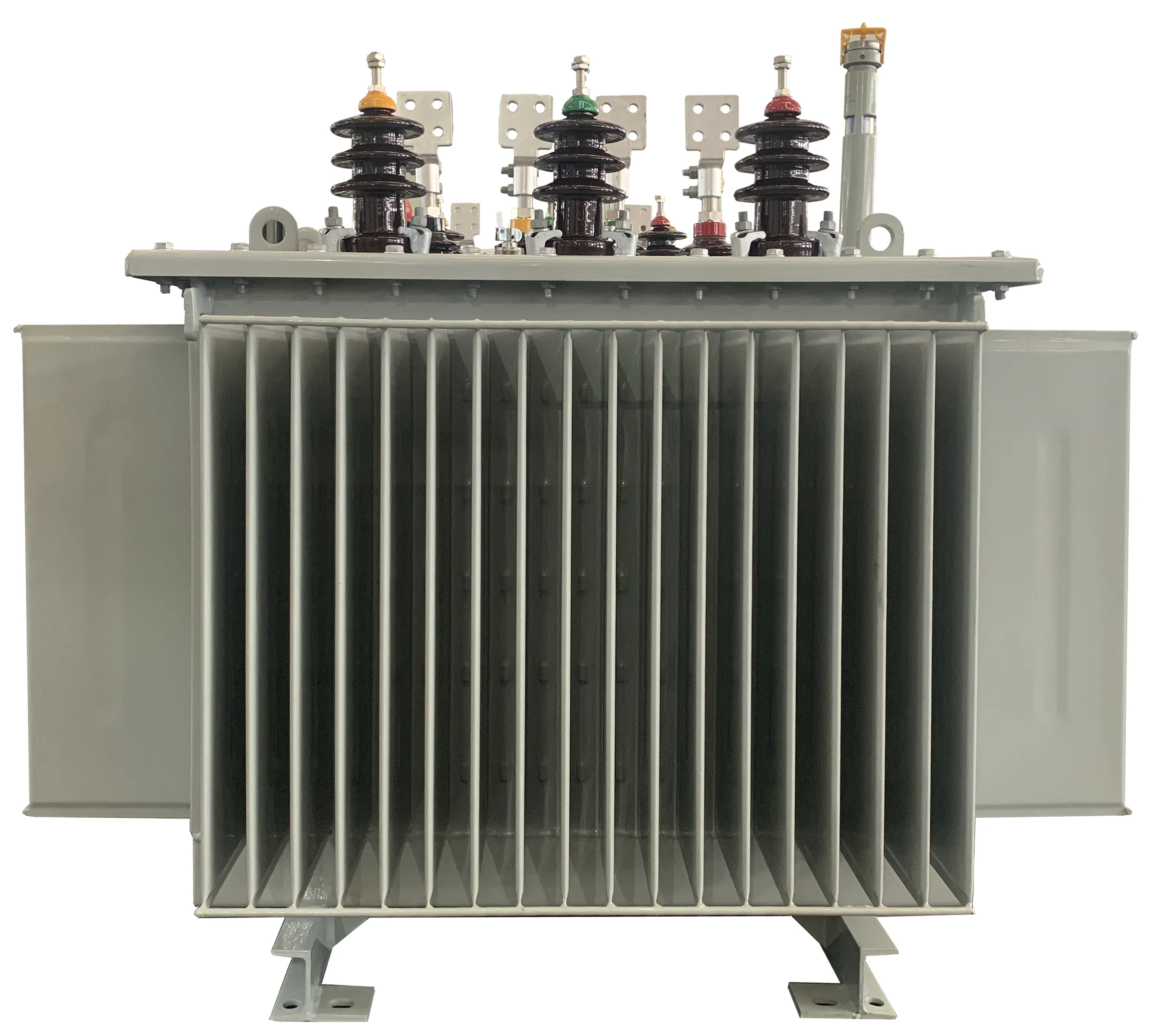

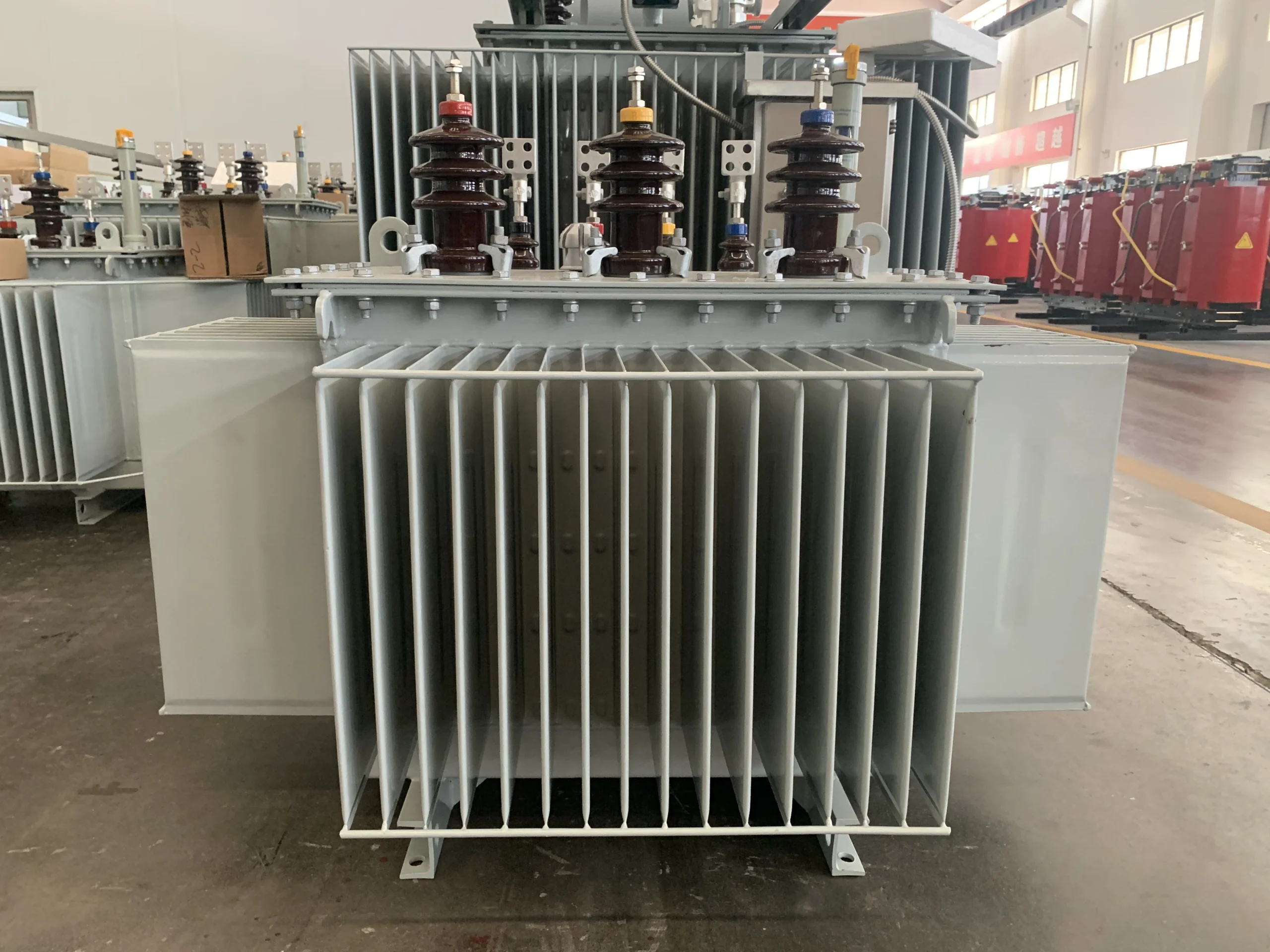

100kVA 10 0.4kV Oil Immersed Distribution Transformer
100kVA 10 0.4kV Oil Immersed Distribution Transformer
The 100kVA 10 0.4kV Oil Immersed Distribution Transformer is engineered to deliver reliable voltage step-down for medium-voltage utility grids and localized industrial networks. Utilizing advanced mineral oil insulation, this robust transformer ensures excellent thermal dissipation and provides an ideal solution for remote distribution networks, rural electrification, and small-scale commercial complexes.
Key Specifications
- Rated Capacity: 100 kVA
- Primary Voltage: 10 kV
- Secondary Voltage: 0.4 kV
- Transformer Type: Oil Immersed Distribution
- Cooling Method: ONAN (Oil Natural Air Natural)
- Phase: Three Phase
- Vector Group: Dyn11
- Frequency: 50 Hz
100kVA 10 0.4kV Oil Immersed Distribution Transformer
Certified & Verified Enterprise
Ready to Upgrade Your Power Infrastructure?
Secure your energy supply with the 1000 KVA / 1250 KVA 11 KV Step Down Cast Resin Dry Type Power Transformer. Engineered with CRGO core and UL certification for maximum reliability. Get factory-direct pricing and professional engineering support today.
Technical Specifications
Comprehensive parameters for the 100kVA 10 0.4kV Oil Immersed Distribution Transformer
Need Complete Details?
Download our comprehensive product catalog and technical manual for full engineering data and installation guidelines.
Download PDF Manual| Parameter | Specification Details |
|---|---|
| Phase | Three Phase |
| Rated Capacity | 100 kVA |
| Primary Voltage | 10 kV |
| Secondary Voltage | 0.4 kV |
| Frequency | 50 Hz |
| Vector Group | Dyn11 |
| Cooling Method | ONAN |
| Insulation Class | A |
| Core Material | CRGO Silicon Steel |
| Design Standard | IEC 60076 |
| Tapping Range | ± 2 x 2.5% or ± 5% |
| Application | Secondary Distribution / Rural Electrification |
| Certification | CE / ISO |
| Warranty | 24 Months |
